Lumii MAX™ – MC Series

Compact wireless charging for light-duty AMRs and mobile robots.

The MC-300 and MC-600 are purpose-built for lightweight AMR platforms — delivering reliable, contact-free power transfer in a compact form factor. Drop into any natural stop: handoff points, queue positions, loading zones. No dedicated charging run. No alignment required.

Discuss Your Application

MC-300

MC-600

Small Footprint. Serious Performance.

Compact Design

TX and RX modules measure just 160 × 160 × 50 mm — engineered to integrate into space-constrained robot chassis without compromising payload or mobility.

Flexible Installation

Wall-mount, floor-mount, or flush ground installation for the transmitter. Surface-mount, embedded, or concealed integration for the receiver. No major infrastructure changes required.

High Position Tolerance

Reliable power transfer with up to ±20 mm lateral offset — designed for real-world docking accuracy, not lab conditions.

Industrial Protection

IP65-rated enclosures across the full system. Operating temperature range of −20 °C to +70 °C. Built for factories, warehouses, and beyond.

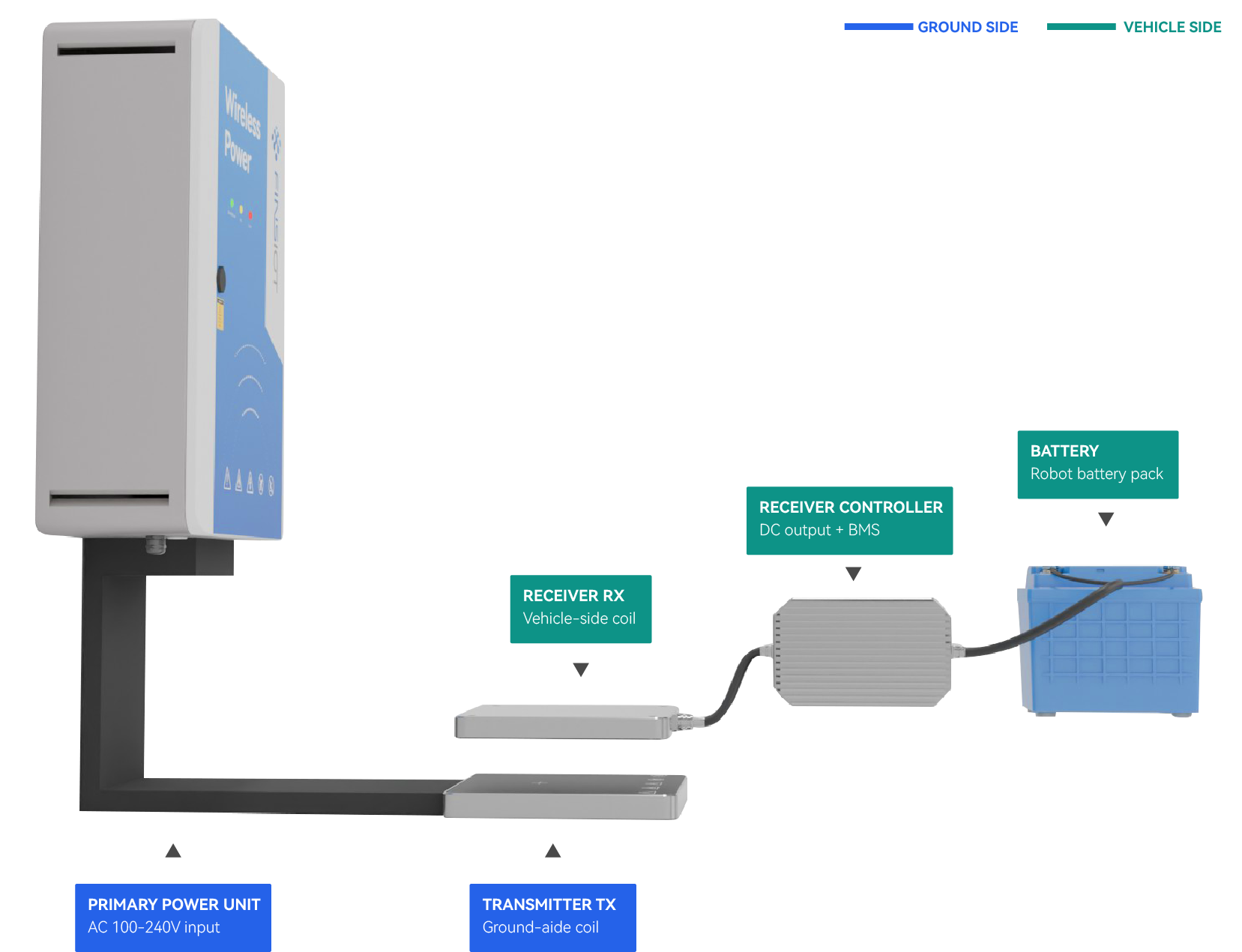

How it Integrates

Ground Installation

Wall Mount

Saves floor space

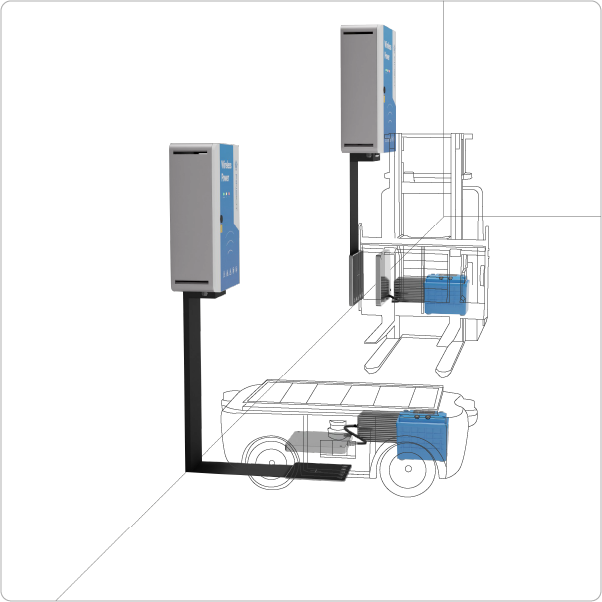

Floor Embed

Flush with surface

Vehicle Integration

Surface

External fit

Embedded

Flush chassis

Internal

Concealed

Applications

Engineered for space-constrained robots and dynamic logistics fleets.

PERFORMANCE

Continuous Power

300 W

Output Voltage

24V / 48V DC

CHARGING RANGE

Air Gap (Z-axis)

0 – 15 mm

Position Tolerance

X: ±20 mm | Y: ±5 mm

ENVIRONMENT

Protection Class

IP65

Operating Temp.

-20°C to 70°C

SYSTEM

Typical Efficiency

≥ 85%

Communication

RS485
